INNOVATION FOR THAI HABITAT

Design for Thai styles of living, ease of use and practicality.

ออกแบบจากแนวคิดเพื่อชีวิตคนไทย สู่การใช้ง่ายและเป็นระบบ

รองรับการติดตั้งมุ้งกันแมลงด้านในบ้านอย่างสมบรูณ์

ด้วยวงกบประตูหน้าต่างขนาด 10 ซม. พอดีกับขอบผนังปูน










Perfectly compatible with the installtion of insect screen
with 10cm Framws that fit the cememt edge.

ระบบล็อคเพื่อการระบายอากาศ (Ventilated Lock)

ระบบล็อค 2 ระดับสำหรับหน้าต่างบานเปิด ระดับที่ 1 ล็อคบานได้อย่างแนบสนิท และระดับที่ 2 ล็อคบานโดยยังเปิดให้มีช่องหน้าต่างเพื่อการระบายอากาศในห้องได้

Ventilation lock
This ventilation lock features two-stage lock system for casement doors and windows: the first one for secure lock, and the second for ventilation lock-allowing the window to be opened for air flow but remain locked preventing unwanted or unexpected entry.

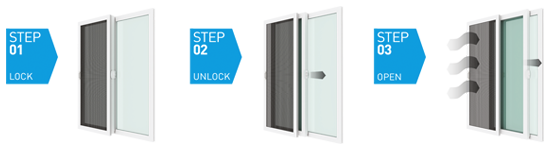

ระบบการเลื่อนเปิดหน้าต่างโดยไม่ต้องเปิดมุ้งลวด

หน้าต่างที่ออกแบบอย่างเป็นระบบเพื่อให้ง่ายต่อการเปิดบานหน้าต่างโดยไม่ ต้องเปิดมุ้งลวดก่อน สามารถระบายอากาศโดยแมลงไม่เข้าบ้านขณะเปิดหน้าต่าง


Easy Sliding System without Openning Insect Screens
Designed for greater convenience with the use of effective sliding system without opening insect screens, this improves air flow while preventing mosquitos entering the builsing.


ULTIMATE PROTECTION

Providing maximum protection against external disturbances

ระบบการใช้งานที่ให้มาตรฐานการปกป้องสูงสุดต่อสิ่งรบกวนภายนอก

Heat Protection

ป้องกันความร้อน
ลดการถ่ายเทความร้อนเข้าสู่ตัวอาคารได้ดีกว่าบานอลูมิเนียมทั่วไป 40% ช่วยประหยัดการใช้พลังงาน

Heat Protection
40% better protection against heat infiltration into buildings than resuling in high energy efficiency.
*ISO 8990 certified


Noise Protection

ป้องกันเสียงรบกวน
ลดทอนเสียงรบกวนจากภายนอกสู่ภายในบ้านถึง 32 เดซิเบล ดีกส่าบานอลูมิเนียมทั่วไป 40%

Noise Protection
40% better protection against external noise infiltration into buildings than regular aluminium, or up to 32 decibel.
*ASTM E90 certified

Leak Protection

ป้องกันการรั่วซึม
ป้องกัน การรั่วซึมของน้ำและอากาศภายใต้แรงลมที่มีความเร็ว 120 กิโลเมตรต่อชั่วโมง เทียบเท่าพายุใต้ฝุ่น

Leak Protection
Protect against air and water infiltration under wind speed of 120 km/h (equivalent to typhoon).
*ASTM E331 and ASTM E283 certified


Safety Protection

ป้องกันความปลอดภัย
มั่นใจในความปลอดภัยจากโครงสร้างที่เข็มแข็ง สามารถต้านทานแรงลมปะทะ 80 kg/m2 พร้อมดีไซนืของวงกบ กรอบบาน และระบบล๊อกที่ออกแบบเพื่อป้องกันการงัดแงะ

Safety Protection
Ensure maximum safety with advanced frame, sash and lock systems designed especially to reduce the risk of break-ins.
It can witstand wind speed of 80 kg/m2.

SPECIFICATION

ความพิเศษเฉพาะหน้าต่าง-ประตู วินเซอร์


Hart Tranfer Reduction

ฉนวนกันความร้อน
คุณสมบัติของไวนิลเป็นฉนวนกันความร้อนจากภายนอกได้ดีกว่าเมื่อเทียบกับอลูมิเนียม

Heat Tranfer Reduction
Superior vinyl components pro better thermal insulation than aluminium.

Energy Glass & Double-Glass

มอบมาตรฐานกระจกประหยัดพลังงานทุกบานประตูหน้าต่าง และรองรับกระจก 2 ชั้น
ช่วยลดการใช้พลังงาน และสามารถป้องกันเสียงและความร้อนได้ดียิ่งขึ้น
*รองรับกระจกหนาสูงสุด 29 มม. สำหรับบานเปิด และ 22 มม. สำหรับบานเลื่อน

Energy Glass & Double-Glass Supported
The use of specialised glass with dual-pane glass support improves energy efficiency and protects buildings against noise and heat.


Multi-Point Lock System

ล๊อกมากขึ้น ปลอดภัยมากขึ้น
ทุกบานเปิดเพิ่มระบบความปลอดด้วยระบบล็อกกรอบบานเข้ากับวงกบมากว่า 1 จุด

Multi-Point Lock System
Provide added security with frames and sashes bonded together at multiple locations.

Multi-cavity Vinyl Chambers

เพิ่มช่องลดทอนเสียง
ออกแบบโครงสร้างผนังหลายช่อง ช่วยเพิ่มพื้นที่ในการลดทอนเสียงและความร้อนจากภานอกเข้าสู่ภายในบ้าน

Multi-cavity Vinyl Chambers
Large multi-chambered profiles help improve thermal perfomance and reduce the amount of outside noise entering the building.

Fusion Corner Welding

แนบสนิททุกมุมเชื่อม
การเชื่อมมุมเป็นเนื้อเดียวกันของกรอบงานและวงกบ ไม่มีช่องว่างให้เสียงเล็ดลอดหรือเกิดการรั่วซึมของน้ำฝนและความร้อนจากอากาศ

Fusion Corner welsing
Fusion-welded frames and sashes provide excellent acoustic insulation and prevent hot air and infiltration.


Break-in Prevention Design

ออกแบบพิเศษ เพิ่มสมรรถนะความปลอดภัย
ดีไซน์ของวงกบและกรอบบานที่ออกแบบเป็นพิเศษเพื่อป้องกันการงัดแงะ

Break-in Prevention Desing
Added security can be achieved through a special design with frames integrated into sashes, and with secure lock between sliding components, reducing the risk of break-ins and lifting.

Double Seal

เพิ่มขอบยาง 2 ชั้น เพิ่มคุณภาพการป้องกัน
ขอบยาง EDPM 2 ชั้น รอบแนววงกบ กรอบบาน และแนวขอบกระจก เพิ่มประสิทธิภาพการป้องกันเสียง น้ำ และอากาศรั่วซึม

Double Seal

Double-layered EPDM seale on frames and sashes and along glass edges perform as excellent weather-stripping barrier against water and air infiltration as well as external noise.

Water Drainage System

ระบบระบายน้ำภายในรางตามมาตรฐาน มอก.(5 ลิตรตร.ม/นาที)
แถบกั้นน้ำ ป้องกันน้ำรั่วซึมเข้ารางด้านในบ้าน พร้อมออกแบบรางระบายน้ำให้ลาดเอียงเป็นพิเศษ เพื่อช่วยการระบายน้ำ

Water Drainage System

The intergrated drainage system in sliding tracks is certified with Thailand's Industrial Standard.
(5L/sqm/second)

Galvanized Reinforcement Steel

เสริมเหล็กให้แกร่งยิ่งขึ้น
เสริมความแข็งแแรงตลอดแนววงกบและกรอบบานด้วยเหล็กเสริมแรงตามมาตรฐานสากล ผ่านการทดสอบความทนทานต่อการเกิดสนิมภายใต้สภาวะอากาศที่รุนแรง

Galvanized Reinforcement Steel
Improve security features of frames and sashes with high-quality, galvanized reinforcement steel that is strictly tested for resistance to rust under harsh weather conditions.

DESIGN INSPIRATION

แรงบันดาลใจสู่การออกแบบ

Inspiration translated into design

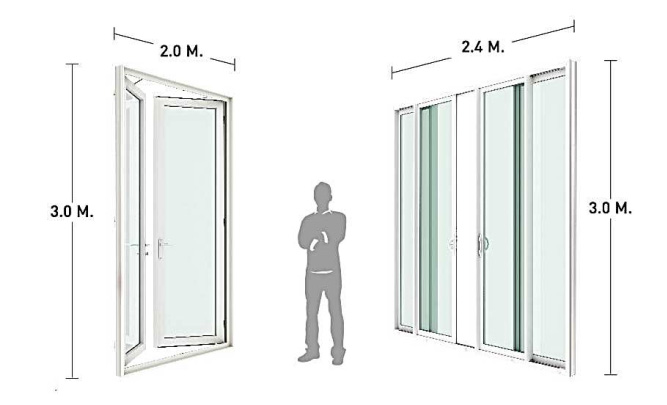

FRAME & SASH DESIGN
แนวคิด Simply Elegant Design

ที่ใส่ใจทุกสัดส่วนของกรอบบานและกระจกอย่างสมดุล ลดทอนเส้นสายที่ไม่จำเป็น ให้ดูเรียบแต่แฝงด้วยความสง่างาม ให้มุมโปรดของบ้าน เปิดกว้างกว่าที่คิด ด้วยการ นำทัศนียภาพที่สวยงามและน่ารื่นรมย์ของธรรมชาติเข้ามาโอบล้อมชีวิตคุณ

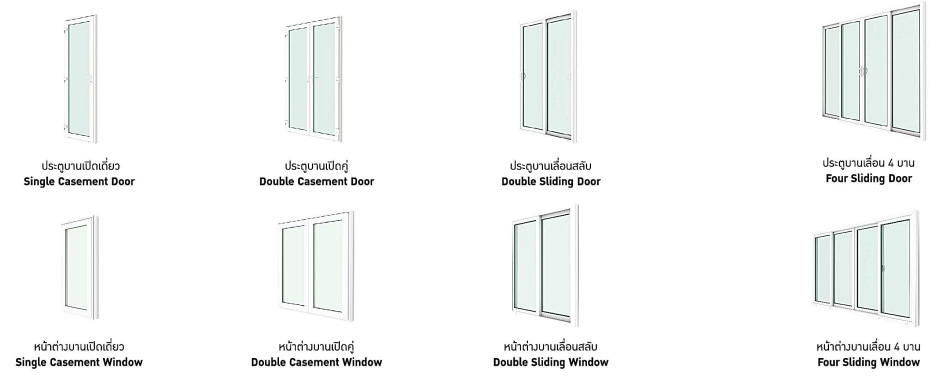

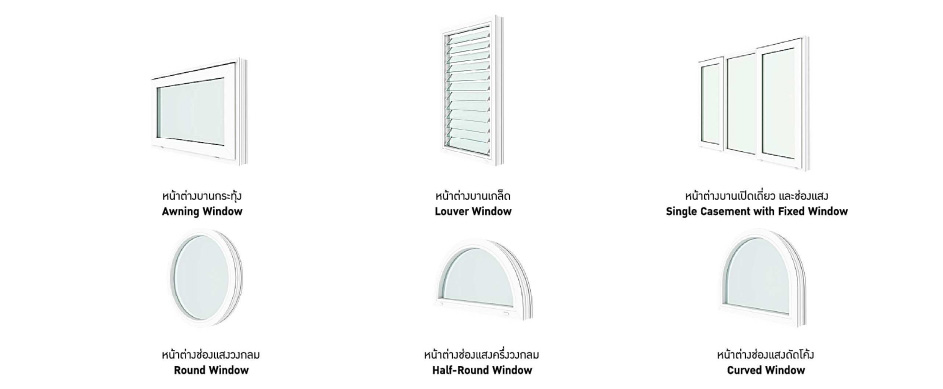

TYPE & VARIETY ชนิดของบานตอบสนองดีไซน์การใช้งานที่หลากหลาย

หลากหลายรูปแบบดีไซน์ของหน้าต่าง ประตู เพื่อความสวยงามที่ลงตัวกับ ทุกฟังก์ชั่นการใช้งาน

WINDSOR SHOWROOM

DOWNLOAD

ราคาแนะนำ

ราคาแนะนำ

SUPERIOR SERVICES

ให้คำปรึกษา ถอดแบบ และประเมินราคา

วัดหน้างานและเตรียมความพร้อมก่อนติดตั้ง

ประกอบ ติดตั้งสินค้าโดยช่างผู้เชี่ยวชาญ

บริการหลังการขาย พร้อมรับประกันสินค้า
